Features:
Designed for transportation of luggage, bulky goods, equipment, parcels etc.
Body and roof constructed from 0.9mm corrosion resistant electro-galvanized sheet steel.
Doors have heavy-duty robust hinges for longevity

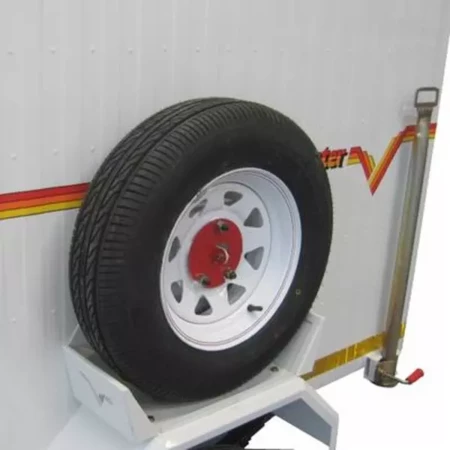

Pad-lockable spare wheel holder mounted on left mudguard
Adjustable jockey wheel 8 inch

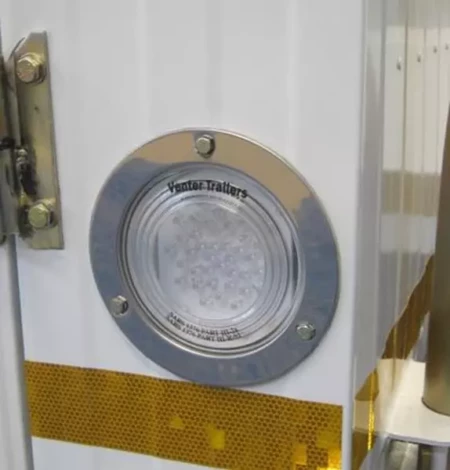

Multi-function LED lights
5 x floor-recessed heavy-duty tie-down rings

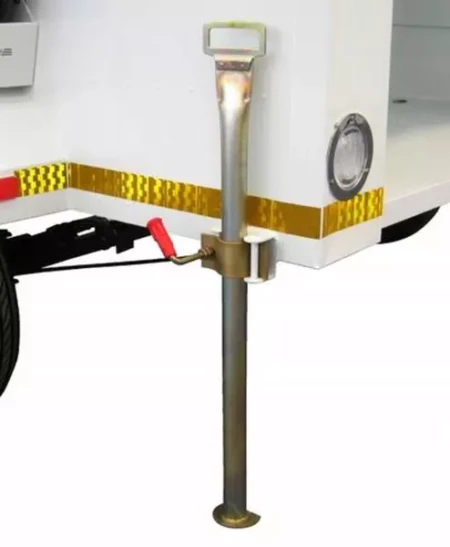

Adjustable rigid support legs for uneven ground
Back and side door doors are pad-lockable.
Sides are strengthened by formed hat-sections which prevents drumming and vibration.
Heavy-duty coupler with brake
Technical Info:
Tare Mass: 560 kg
GVM: 1525 kg
Pay Load: 965 kg
Brakes: Run – in
Axle Length: 1830 mm
Axle Capacity: 1800 kg
Leaf Springs: 12 Blade
Wheels: 195 x 14 inch 6 stud
Dimensions:
A – Height (over all) – 2200 mm
B – Height – 1650 mm
C – Length (body) – 2960 mm
D – Length (over all) – 3860 mm
E – Width (inside) – 1525 mm
F – Width (over all) – 2050 mm
G – Ground Clearance – 260 mm
Doors:
Door (rear – height) 1330 mm
Door (rear – width) 1050 mm
Door (side – height) 1280 mm
Door (side – width) 650 mm
Optional Extra’s:
Spare Wheel
Rubber Linings
