Features:
Superb for transportation of bulky heavy weight goods.
A well balanced, multi-purpose, heavy duty trailer, durable yet light for towing.
Body constructed from 1.6mm corrosion resistant electro galvanized sheet steel.
Floor constructed from 1.6 mm corrosion resistant electro galvanized sheet steel.
Doors are pad-lockable and can be found at the left side and the back of the trailer for easy loading.
Adjustable heavy-duty support legs
Pad-lockable spare wheel holder
New aerodynamic round nose creating additional storage space.
Adjustable 8 inch jockey wheel

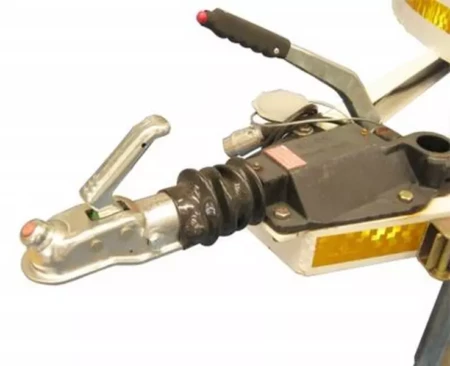

Heavy duty galvanised coupler
7 x Floor-mounted tie-down lugs
Multi-function LED lights
The trailer has a design registration No. F2004/0491, since 15 April 2004. Copyright also applies in respect of the trailer.
Optional Extra’s:
Spare Wheel
Rubber Linings
Dimensions:
A – Height (over all) – 1840 mm
B – Height – 1340 mm
C – Length (body) – 2690 mm
D – Length (over all) – 3660 mm
E – Width (inside) – 1525 mm
F – Width (over all) – 2010 mm
G – Ground Clearance – 235 mm
Technical Info:
Tare Mass – 400 kg
GVM – 1150 kg
Pay Load – 750 kg
Brakes – Run-in
Axle Length – 1830 mm
Axle Capacity – 1250 kg
Leaf Springs – 10 Blade 36 inch
Wheels – 195 x 14 inch
Doors:
Door (rear – height) 1010 mm
Door (rear – width) 1070 mm
Door (side – height) 1010 mm
Door (side – width) 550 mm
Images & Specs are for illustration purposes only
