Features:
Designed for transportation of luggage, bulky goods, plants, sport equipment, parcels etc.
Body and roof constructed from 0.9mm corrosion resistant electro-galvanised sheet steel.
Doors are pad-lockable and can be found at the left side and the back of the trailer for easy loading.
All doors are pad-lockable and equipped with new heavy-duty hinges for robust usage
Sides are strengthened by formed hat-sections which prevents drumming and vibration.
Two adjustable extending supporting back legs to provide levelling and stability when parked on uneven ground
7x ring holders to tighten luggage
Multi-function LED lights
Heavy-duty coupler

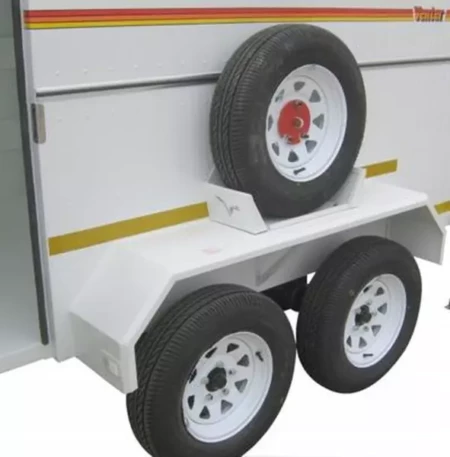

Spare Wheel holder which is pad-lockable
Fitted with run-in brakes for maximum safety
Fitted with 2 Rubax axles.
Adjustable durable jockey wheel 8 inch
Optional Extra’s:
Spare Wheel
Rubber Linings
Dimensions
A – Height (over all) – 2060 mm
B – Height – 1660 mm
C – Length (body) – 3610 mm
D – Length (over all) – 4540 mm
E – Width (inside) – 1525 mm
F – Width (over all) – 2045 mm
G – Ground Clearance – 280 mm
Technical Info
Tare Mass: 740 kg
GVM: 1740 kg
Pay Load: 1000 kg
Brakes: Run – in
Axle Length: 1890 mm
Axle Capacity: 1500 kg X 2
Leaf Springs: Rubax Axle
Wheels: 165 x 13 inch
Doors
Door (rear – height) 1330 mm
Door (rear – width) 1050 mm
Door (side – height) 1280 mm
Door (side – width) 730 mm
