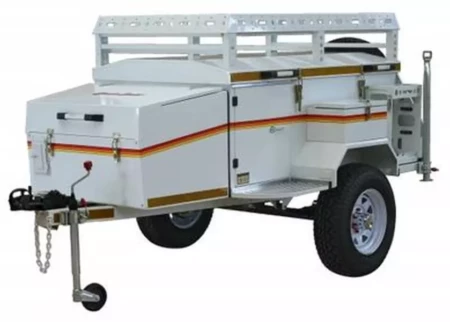

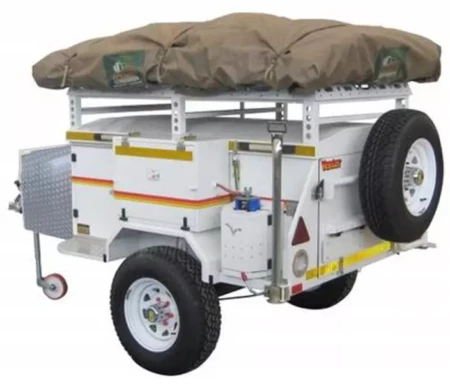

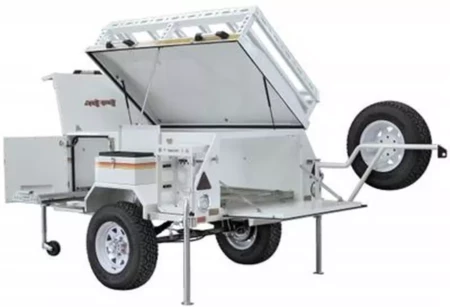

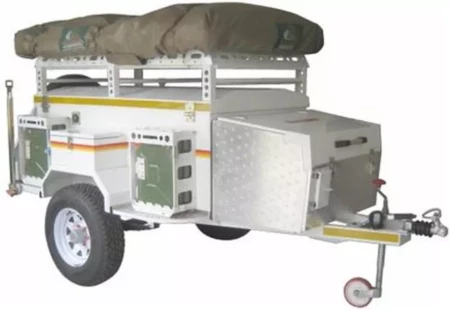

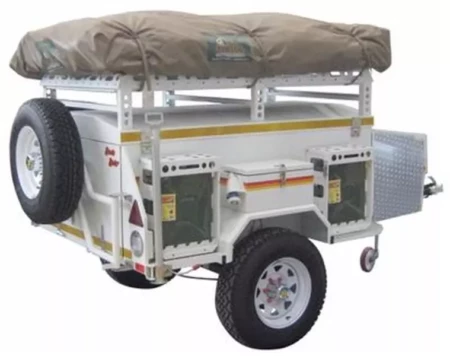

The Bushbaby trailer has had steady improvements added over the years, making this well-suited to harsh outdoor conditions. With addition of the extra features this trailer really shines. It comes in an unbraked and braked version.

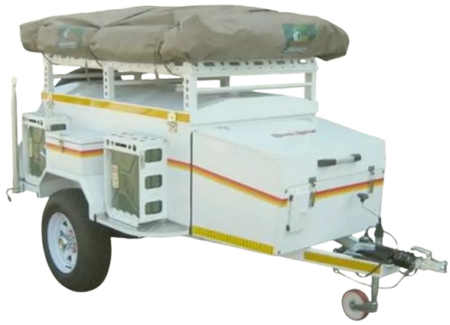

Bushbaby Braked Fitted With All Optional Equipment (or without any optional Equipment)

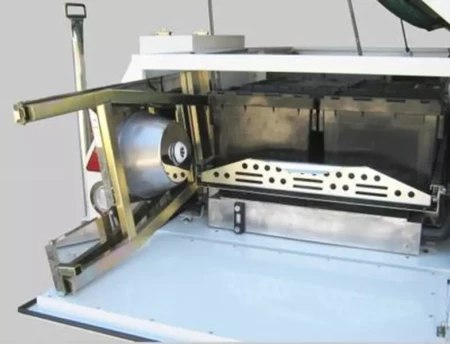

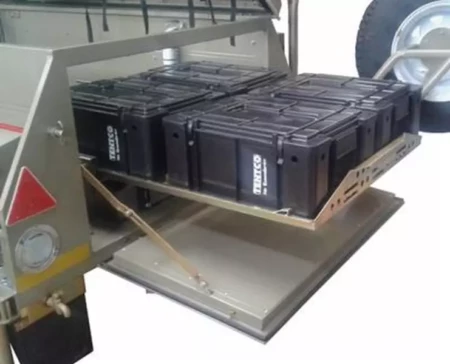

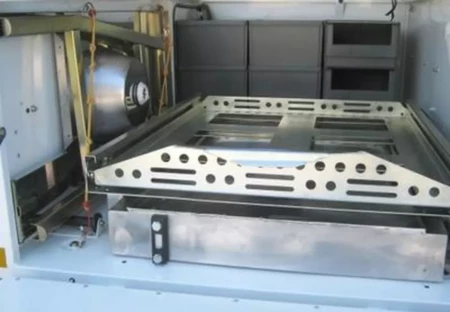

• Rear draw out rack for ammo boxes 900mm x 1130mm

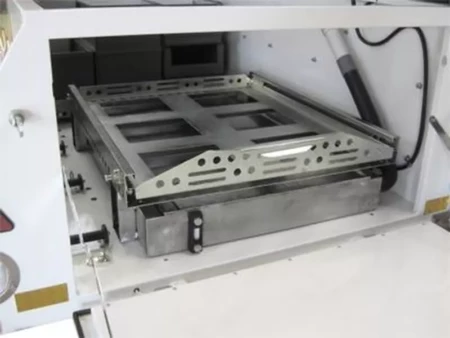

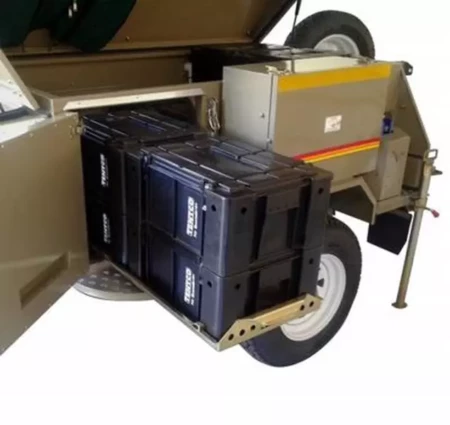

• Side draw out rack for ammo boxes 455mm x 1075mm
• Washing table nylon storage rollers
• Lockable water tank filler cap

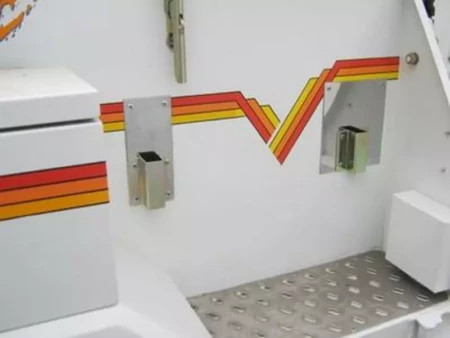

• Stainless steel washing table mounting brackets
• Two pad-lockable jerry can holders
• One heavy duty steel roof rack with table compartment able to carry a large tent

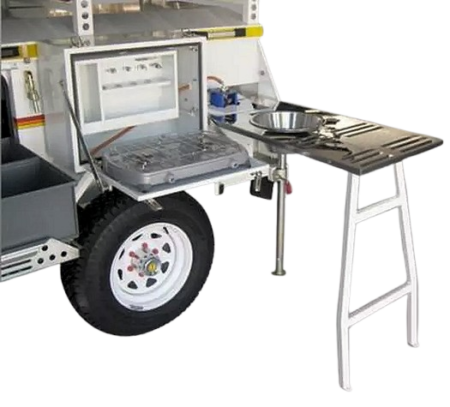

• Kitchenette with twin hob gas stove and spice storage rack
• Two extending supporting back stays and one jockey wheel to provide levelling
• 15 inch 6 stud rims with 215 tyres for rough terrain
• One spare wheel
• Epoxy coated in white, beige or green, manufactured from quality zinc galvanised sheet steel.
• 6 ring holders with securing straps
• Axle capacity 1800kg
• 2 Gabriel shock absorbers
• 12 blade 36 inch leaf springs

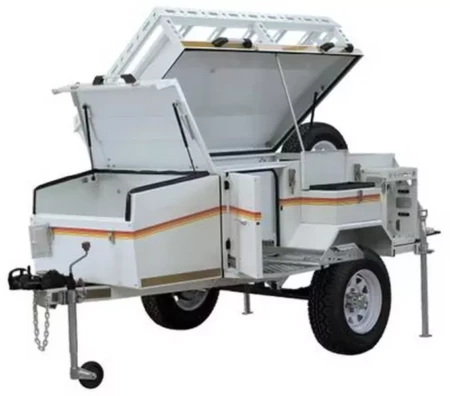

• Pad-lockable tailgate that serves as a table top
• Alko-Trailco coupler

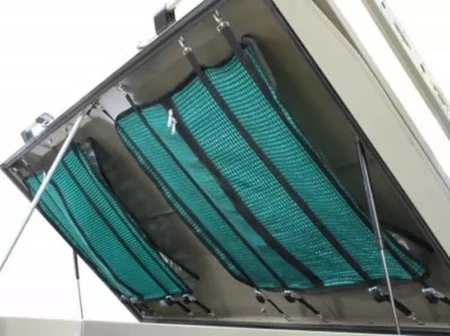

• 2 x lid net zip bags

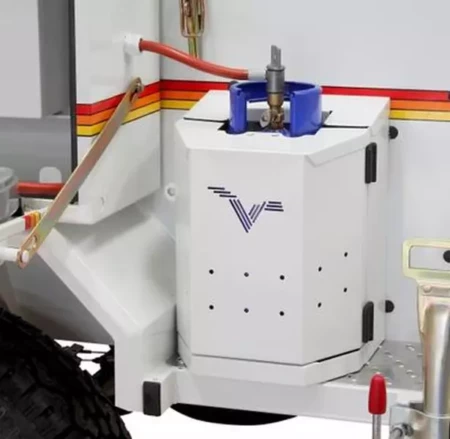

• 1 x pad-lockable 5kg gas cylinder holder
• Multi-function LED lights

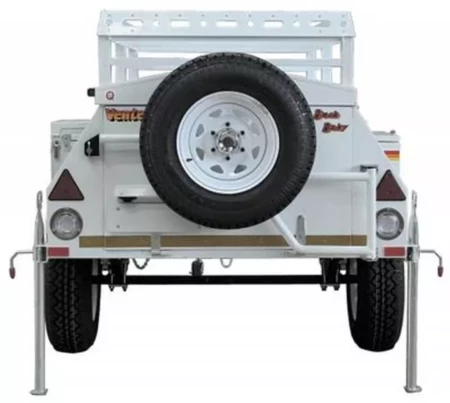

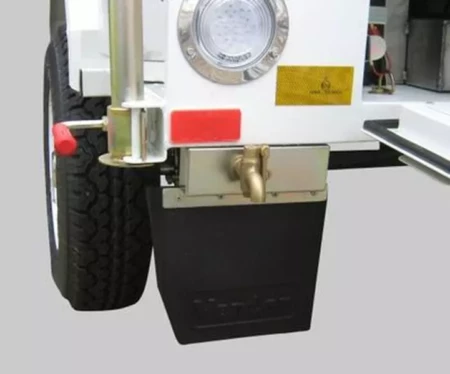

• Swing-out spare wheel attachment with maintenance-free vesconite bushes
• Accidental spare wheel bracket stop with reinforced quarter panels

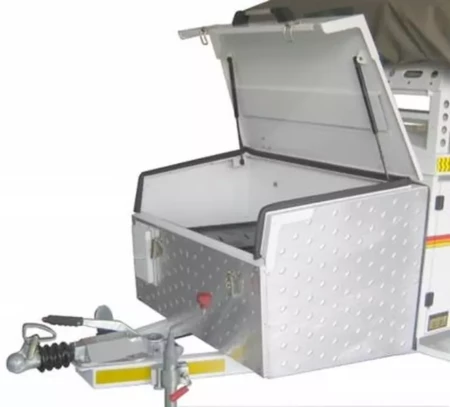

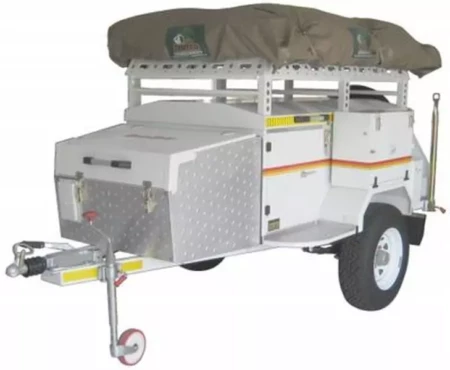

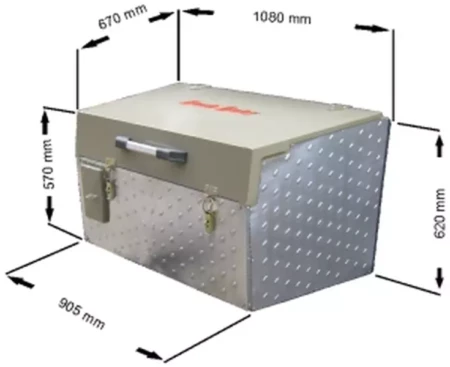

• Large new nosecone with 4 tie-down rings able to house an 80 litre fridge, accessible from the front, with spring assisted access flap

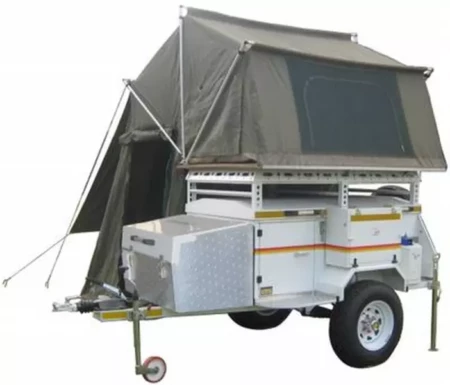

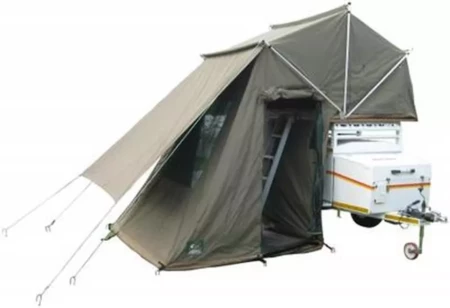

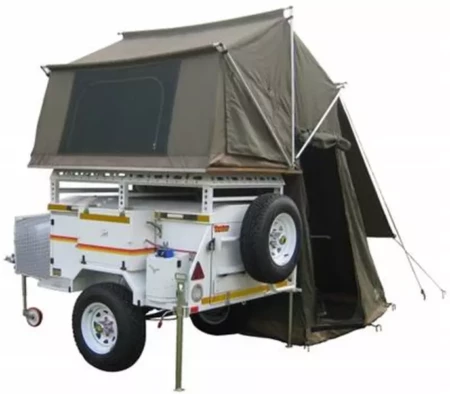

• 1 x Senior tent 2-4 man
• 1 x Washing table stainless steel
• 1 x 304 S/S 80l water tank complete with lockable filler cap
• Water
Dimensions:
A – Height (over all) – 1570 mm
B – Height – 800 mm
C – Length (body) – 1860 mm
D – Length (over all) – 3560 mm
E – Width (inside) – 1100 mm
F – Width (over all) – 1760 mm
G – Ground Clearance – 330 mm
I – Length (nose-cone) – 670 mm
Technical Info:
Tare Mass: 440 kg
GVM: 1470 kg
Pay Load: 1030 kg
Brakes: Run-in
Axle Length: 1530 mm
Axle Capacity: 1800 kg
Leaf Springs: 12 Blade 36 inch
Wheels: 215 x 15 inch
Doors:
Door (rear – height) 560 mm
Door (rear – width) 1020 mm
Door (side – height) 540 mm
Door (side – width) 510 mm
