Features:

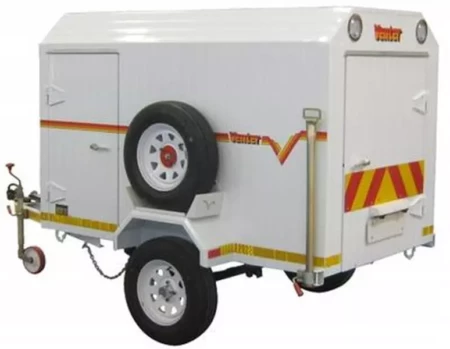

Designed for transportation of luggage, bulky goods, plants, sport equipment, parcels etc.
Body and roof constructed from 0.9mm corrosion resistant electro-galvanized or zinc galvanized sheet steel.
Sides are strengthened by formed hat-sections which prevents drumming and vibration.
Doors have heavy-duty robust hinges for longevity

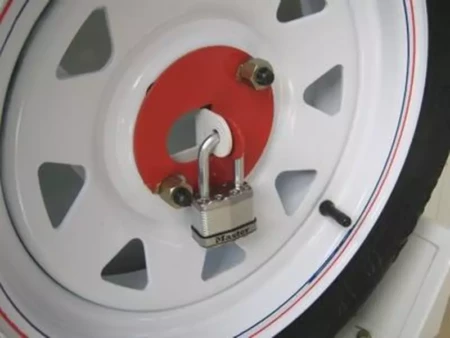

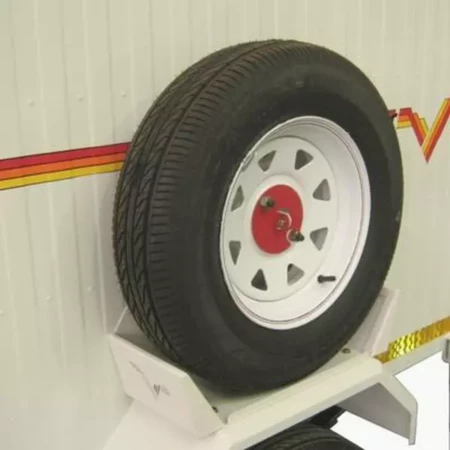

Pad-lockable spare wheel holder mounted on left mudguard
Galvanized coupler

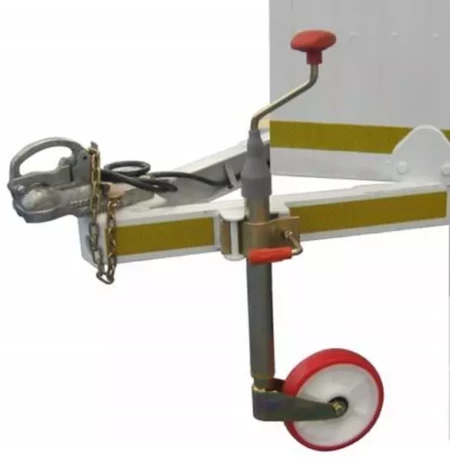

Adjustable jockey wheel 8 inch, fitted with two bearings for longevity
Multi-function LED lights
Adjustable rigid support legs for uneven ground
Back and side door doors are pad-lockable.
Flush floor-mounted ring holders
Durable corrosion-proof dust caps
Number plate holder and light fitting
Primer coat and white coat of paint
Dimensions:
A – Height (over all) – 1820 mm
B – Height – 1350 mm
C – Length (body) – 2690 mm
D – Length (over all) – 3285 mm
E – Width (inside) – 1200 mm
F – Width (over all) – 1660 mm
G – Ground Clearance – 215 mm
Technical Info:
Tare Mass: 340 kg
GVM: 750 kg
Pay Load: 410 kg
Brakes: No Brakes
Axle Length: 1480 mm
Axle Capacity: 1250 kg
Leaf Springs: 8 blade

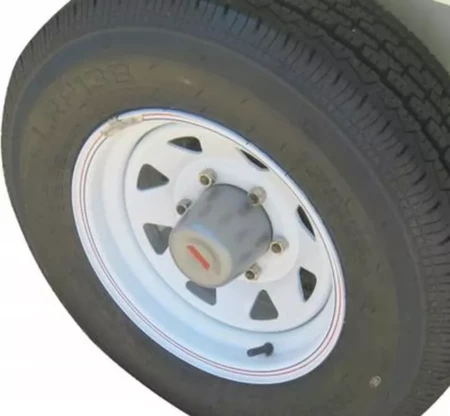

Wheels: 165 x 13 inch
Doors:
Door (rear – height) 1010 mm
Door (rear – width) 845 mm
Door (side – height) 1010 mm
Door (side – width) 550 mm
Optional Extra’s:
Spare wheel.
Rubber Linings
