Features:
Designed for transportation of luggage, bulky goods, plants, sport equipment, parcels etc.
Body and roof constructed from 0.9mm corrosion resistant electro-galvanised or zinc galvanised sheet steel.
Sides are strengthened by formed hat-sections which prevents drumming and vibration.
Doors have heavy-duty robust hinges for longevity

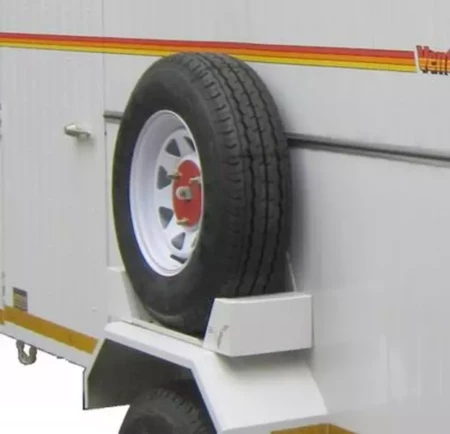

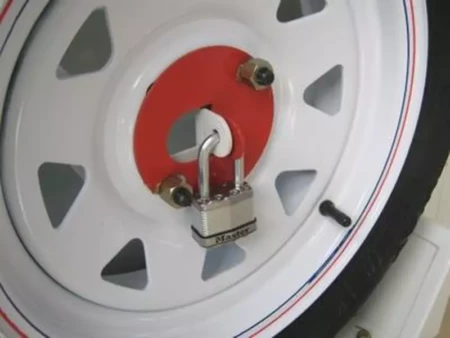

Pad-lockable spare wheel holder mounted on left mudguard
Galvanised heavy-duty coupler
Adjustable jockey wheel 8 inch, fitted with two bearings for longevity
Multi-function LED lights

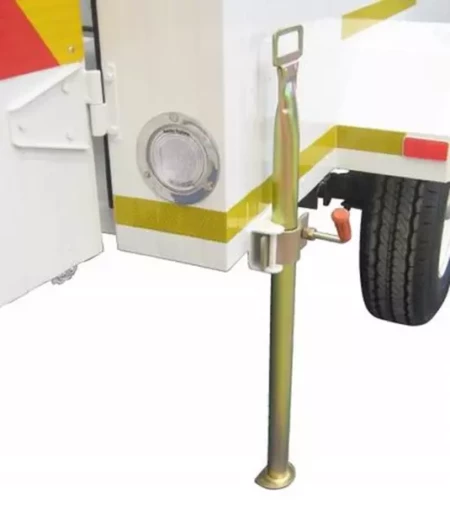

Adjustable rigid support legs for uneven ground
Back and side door doors are pad-lockable.
Flush floor-mounted ring holders
Durable corrosion-proof dust caps
Numberplate holder and light fitting
Including spare wheel 195×14 inch
Primer coat and white coat of paint
Optional Extra’s:
Spare Wheel
Rubber Linings
Dimensions:
A – Height (over all) – 1840 mm
B – Height – 1340 mm
C – Length (body) – 2690 mm
D – Length (over all) – 3660 mm
E – Width (inside) – 1525 mm
F – Width (over all) – 2010 mm
G – Ground Clearance – 235 mm
Technical Info:
Tare Mass: 400 kg
GVM: 1150 kg
Pay Load: 750 kg
Brakes: Run-in brakes
Axle Length: 1830 mm
Axle Capacity: 1250 kg
Leaf Springs: 10 blade

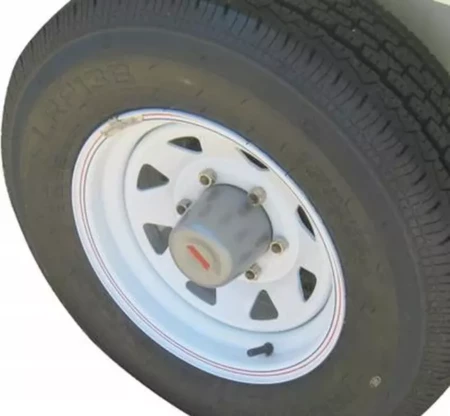

Wheels: 195 x 14 inch
Doors:
Door (rear – height) 1010 mm
Door (rear – width) 1070 mm
Door (side – height) 1010 mm
Door (side – width) 550 mm
