Features
Perfectly balanced, yet light weight and durable.
Body constructed from 0.9 mm corrosion resistant rigidised zinc galvanized sheet steel.
Dogs are separated by partitions.
Each compartment is fitted with a mesh hole in the floor for cleaning.
Four doors that are pad-lockable.

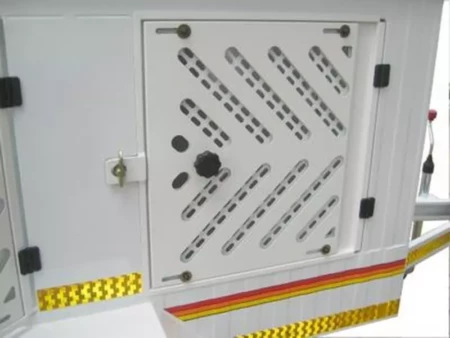

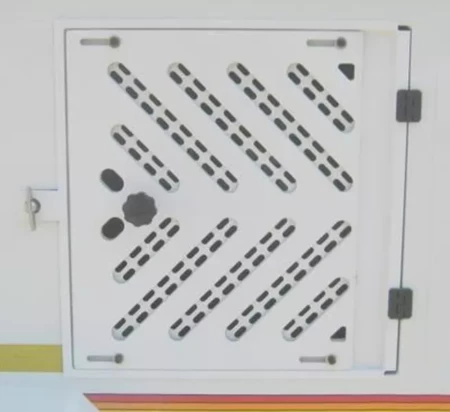

Adjustable sliding vents on doors to protect the animal from wind, sun and rain.
Sides are strengthened by formed top-hat sections which prevents drumming and vibration.
Multi-function LED lights
Weather-proof sprung roof-mounted air vents, with screens to prevent dogs pushing through opening
Pad-lockable front mounted spare wheel bracket
Steel number plate mounting panel
Robust number plate light
Adjustable jockey wheel
Coated cast alloy door hinges
Including spare wheel 165x13inch
Dimensions
Height (over all) 1530 mm
Height 1040 mm
Length (body) 1660 mm
Length (over all) 2585 mm
Width (inside) 1120 mm
Width (over all) 1645 mm
Ground Clearance 255 mm
Technical Info
Tare Mass 220 kg
GVM 700 kg
Pay Load 480 kg
Brakes No Brakes
Axle Length 1450 mm
Axle Capacity 750 kg
Leaf Springs 6 Blade
Wheels 165 x 13 inch
